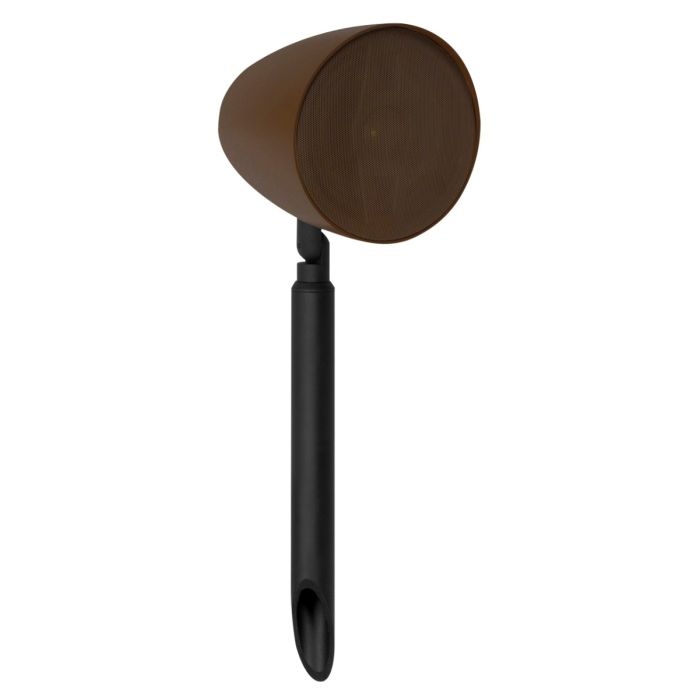

Monitor Audio CLG160 Satellite Garden Speaker
Monitor Audio CLG160 satellite is suitable for ground level installation within the garden and around decking areas or mounted onto a tree, pole or garden fence, the new CLG160 speaker features a rigid polymer shell which ensures it is resilient to extreme weather conditions.
Installation is simple, thanks to the requirement for the speaker to be wired in a mono configuration and powered by one amplifier channel. The other amplifier channel can be used to power the subwoofer. This configuration allows the levels between bass and mid-high range to be easily equalised. Alternatively, the system can be designed to provide stereo operation if desired by creating stereo left/right zones.
Despite being installed outside, the aesthetics of the speakers are just as important. Finished in dark brown, the CLG160 blends seamlessly into this environment to provide high quality sound for outdoor entertainment, whilst not distracting from the landscape. The speaker casing can be painted a different colour, if required.
Please note: Brackets & Spikes Sold Separately.
Features:
- Purposely designed 6” MMPII bass-midrange driver
- Coaxially aligned 25mm C-CAM gold dome tweeter
- Optimised for high sensitivity and wide dispersion
- Internal matching transformer for 70/100V line level operation
- Designed to operate under extreme climatic conditions from -20 to 70 C
- Rigid, high impact cast polymer cabinet for long life and durability
- Bracket mounting made from die-cast aluminium alloy
- Garden spike provided although tree or pole mounting is possible with additional fixings
- Certified to IP55 rating
- Encapsulated cable runs inside bracket and spike for discreet appearance
- Dark Brown finish blends with garden colours, but enclosure is paintable to blend with alternative settings
- Applications include garden and deck areas: system expands with garden size
- PTC protection against power overload
Monitor Audio Warranty:
Monitor Audio Garden Speaker Series carry a 5 Year Warranty
We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.
Frequency Response (-6 dB)
80 Hz — 30 kHz
Sensitivity (1W@1M)
89 dB
Line Level Voltage
70/100 Volt line level
Maximum SPL
107 dBA
Power Handling (RMS)
60 Watts (crossover set to minimum 80 Hz @12 dB/Octave)
Recommended Amplifier Requirements
10-60 watts per speaker
Drive Unit Complement
1 x 6" MMP II cone bass-mid driver
1 x 25 mm C-CAM Gold Dome tweeter – Coaxially oriented
Crossover Frequency
80 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
Total Bracket Pivot Angle
180 degrees
Connection
Encapsulated cable connection
Environmental Protection Rating
IP55
Operating Temperature Range
-20° to 70° C / -4° to 158° F
Colour / Finish
Dark Brown
Dispersion
60 degrees
External Dimensions (Excluding Spike and Mount (H x W x D))
190 x 220 mm (71/2 x 811/16")
Weight
2.76 kg (6 lb 2 oz)
