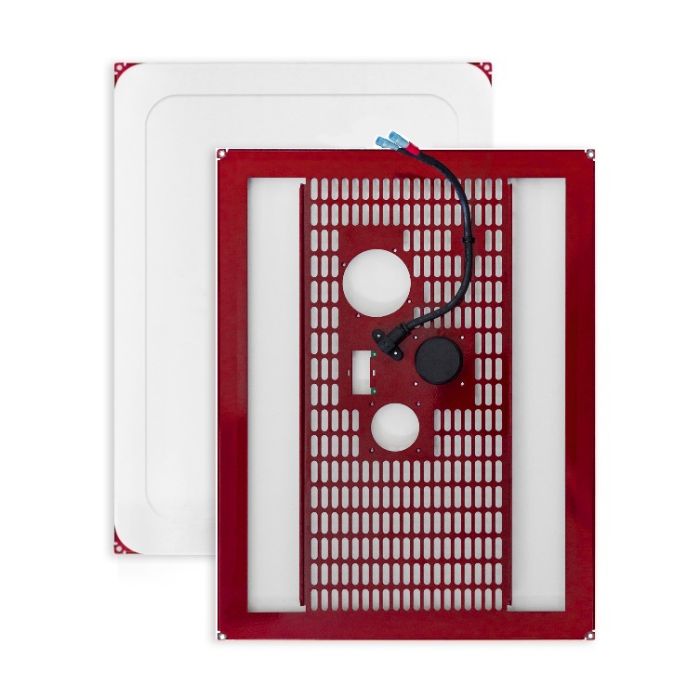

Amina Edge5i Plaster In-Wall Invisible Speaker
Amina Edge5i Plaster In-Wall Invisible Speaker
with FREE UK DELIVERY
Amina Edge5i Plaster In-Wall Invisible Speaker is a new revolutionary design for invisible loudspeaker technology, the Amina Edge5 offers smooth low frequency extension and increased sensitivity, resulting in a dynamic and engaging listening experience that has never before been heard from an invisible loudspeaker. Building on the award winning Evolution Series design, the Edge5 incorporates OptiDamping and Reduced Resonance Exciter technology built into a plaster up-to design. The speaker uses a high quality fire-resistant panel material which allows for seamless integration into plasterboard walls and ceilings without the need for a full wet skim, all in the easy to install, light weight form-factor that Amina is known for.
Example Applications:
Medium-power residential/commercial distributed audio solutions and multi-channel surround sound systems. Designed for dryline installation or retrofit into fully skimmed walls/ceilings. Not suitable for solid-wall installation.
Compatible Accessories:
- Backbox CV345
- Firehood345
- Mounting Blocks
- Shim Kits
- APUi50C, APU-RS8iC, APU-RS16iC
- ALF80, ALF120.
Amina Warranty:
10 year manufacturer limited warranty (Installed by authorised Installers).
We are authorised Amina retailers. Brand new and complete with the full manufacturers warranty.
Nominal impedance:
- 8 Ohms
Power handling (100 hour continuous/peak):
- 50W/100W
Sensitivity:
- 90dB 1m/2.83Vrms
Frequency response:
- 65Hz - 20kHz (± 6dB) mounted in Backbox CV345
Electrical connection:
- Blue butt-splice crimp terminals (14-16 AWG)
Fixing requirements:
- BackboxCV345 (mounting blocks available on request)
In-line protection unit:
- APUi50C, APU-RS8iC or APU-RS16iC
Manufacturer limited warranty for residential applications:
- 10 years (protection essential)
Dimensions:
- 450mm x 345mm x 40mm
- (173/4” x 135/8” x 15/8”)
Product weight:
- 1.24Kg (2.73lbs)
